Filters from the Bottom Up
Water enters near the base and rises through two Poly-Flo ESA filter mats, combining particle capture with high-surface-area biological filtration.
Aquascape Signature Series 2500 BioFalls® Filter
$773.99
Professional-grade pond filtration and waterfall head
Aquascape Signature Series 2500 BioFalls® Filter
Build biological and mechanical filtration into the head of a natural-looking pond waterfall. The Signature Series 2500 handles ponds up to 2,500 gallons and flows up to 5,000 GPH, while its rounded rotationally molded polyethylene body, reversible spillway lip and removable rock tray help the filter disappear into the landscape.
2,500 gal.Maximum pond capacity
5,000 GPHMaximum pump flow
21.5 in.Waterfall spillway width
Dual 2 in.Bulkhead ports
Why this BioFalls® works
Filtration That Becomes Part of the Waterfall
Shapes the Waterfall Edge
The 21.5-inch reversible lip can face outward for a defined ledge or inward for more freedom when framing the spillway with boulders.
Hides in the Landscape
The rounded black housing is built for strength, while the included upper rock and plant tray supports natural camouflage around the top of the filter.
Before You Order: This Is the Filter, Not a Complete Pond Kit
Choose this model when the pond is no larger than 2,500 gallons and the pump will deliver no more than 5,000 GPH at the installed head height. Plan the complete circulation system before installation.
- A pond pump, skimmer or other effective prefilter, 2-inch flexible PVC pipe, liner and electrical service are not included.
- BioBalls biological media are sold separately. Aquascape recommends 200 BioBalls for the 2500 model.
- Fish-safe silicone, thread sealant, flexible-PVC cement, waterfall foam and most installation tools are not included.
- Natural boulders, gravel, aquatic plants, excavation, site preparation and installation labor are not included.

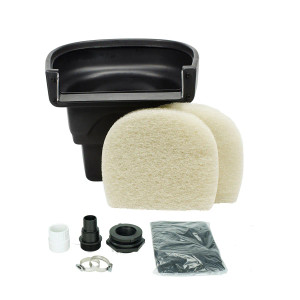

Package contents
What Comes with the Signature Series 2500
Filter & Spillway Assembly
- Signature Series 2500 BioFalls® filter housing
- Reversible 21.5-inch waterfall lip
- Sixteen patented non-cross-threading brass screws
- 2500-series faux waterfall stone for an outward-facing spillway installation
Internal Filtration & Plumbing Parts
- Filter support rack
- Two Poly-Flo ESA filter mats
- Biological filter media net; biological media is not included
- Upper rock and plant tray
- Two 2-inch bulkhead fittings, two 2-inch PVC slip fittings and plug for an unused port
Technical reference
Specifications
Blue Thumb SKU: AI09020
Manufacturer item: 09020
Pond capacity: Up to 2,500 gal. / 9,500 L
Maximum pump flow: 5,000 GPH / 18,900 LPH
Spillway width: 21.5 in. / 55 cm
Bulkhead ports: Dual 2 in.
Included fittings: Two 2 in. PVC slip fittings
Filter mats: Two Poly-Flo ESA mats
BioBalls: Sold separately; 200 recommended
Product dimensions: 24 in. L × 29.5 in. W × 20 in. H
Packaged weight: 28.8 lb. / 13.1 kg
Packaged dimensions: 30 in. L × 24 in. W × 24 in. H
Housing material: Rotationally molded polyethylene
Filter housing warranty: Limited lifetime
Side-by-side comparison
Aquascape 2500 vs. Blue Thumb Medium Elite PB1083
These are the closest like-for-like choices in this size range. Both combine biological filtration with a roughly 22-inch waterfall and dual 2-inch plumbing connections, but their capacity, footprint and included finishing components differ.
| Feature | Aquascape Signature Series 2500 | Blue Thumb Medium Elite PB1083 |
|---|---|---|
| Spillway width | 21.5 in. | 22 in. |
| Filters ponds up to | 2,500 gal. | 3,500 gal. |
| Maximum recommended flow | 5,000 GPH | 6,000 GPH |
| Dimensions | 24 in. L × 29.5 in. W × 20 in. H | 31 in. × 30.5 in. × 23 in. |
| Plumbing connections | Dual 2 in. bulkhead ports | Two 2 in. Spinweld fittings |
| Included filter components | Two Poly-Flo ESA mats and biological-media net; BioBalls sold separately | Matala biological filtration mats and mesh media bag |
| Landscape concealment | Rock and plant tray | Landscape lid |
| Installation supplies | Sealants and flexible-PVC cement sold separately | Silicone, Teflon tape, liner clips and plumbing fittings included |
| Warranty | Limited lifetime on filter housing; one year on plastic internal parts | Lifetime manufacturer warranty |
Aquascape Signature Series 2500
Spillway: 21.5 in.
Pond capacity: Up to 2,500 gal.
Maximum flow: 5,000 GPH
Dimensions: 24 in. L × 29.5 in. W × 20 in. H
Connections: Dual 2 in. bulkheads
Filter media: Two Poly-Flo ESA mats and media net; BioBalls sold separately
Concealment: Rock and plant tray
Supplies: Sealants and flexible-PVC cement sold separately
Warranty: Limited lifetime housing; one-year plastic internal parts
Blue Thumb Medium Elite PB1083
Spillway: 22 in.
Pond capacity: Up to 3,500 gal.
Maximum flow: 6,000 GPH
Dimensions: 31 in. × 30.5 in. × 23 in.
Connections: Two 2 in. Spinweld fittings
Filter media: Matala biological filtration mats and mesh media bag
Concealment: Landscape lid
Supplies: Silicone, Teflon tape, liner clips and plumbing fittings included
Warranty: Lifetime manufacturer warranty
Choose the Aquascape 2500 If...
You want the smaller footprint, the included rock-and-plant tray and faux waterfall stone, or you are matching other Aquascape Signature Series components.
Choose the Blue Thumb PB1083 If...
You want higher pond and flow capacity, a landscape lid, Matala filtration media and more installation supplies included. The PB1083 is made in the USA.
Installation planning
A Realistic Installation Sequence
This is a landscape and plumbing installation. Read the complete manual before digging, cutting liner or gluing pipe.
Choose the Location
Place the BioFalls near the pond edge with the spillway facing the primary viewing area. When used with a skimmer, position it across the pond when practical to support circulation.
Prepare and Level the Base
Excavate to a firm, compacted foundation. Set the housing level from side to side and with the slight forward pitch specified in the manual, then install the rack and rock tray before backfilling.
Configure the Plumbing
Use one bulkhead for a single pump and plug the second port or connect the optional drain kit. The two ports can also accept separate pump lines. Use products rated for flexible PVC and allow joints to cure as directed.
Attach Liner and Spillway
Choose the inward or outward lip orientation, clean and dry the mating surfaces, leave slack in the liner and seal the opening with fish-safe silicone. The manual requires at least one hour of cure time before adding water.
Install Media and Rockwork
Place the mats on the support rack and fill the supplied media net with separately purchased biological media. Build the waterfall and conceal the upper tray without blocking service access.
Run, Inspect and Finish
Start the pump, check every connection and confirm that water covers the spillway. Adjust stone and foam to direct the flow. Do not trim excess liner until the system is running without leaks.
Ownership and care
Protect the Biological Filter
Use a Prefilter
A properly sized skimmer or other prefilter keeps large debris from loading the BioFalls. Aquascape bases its once-a-year cleaning guidance on the filter being used with an effective prefilter.
Clean Conservatively
Do not clean the mats or media bag more than once per year. Avoid chlorinated tap water on biological media because it can reduce or kill the beneficial bacteria colony.
Plan for Freezing Weather
Drain and winterize plumbing, pumps, check valves and other water-holding components when required by your climate. Improper winterization can void applicable warranty coverage.
Important Safety and California Proposition 65 Notice
Follow the pump manufacturer's electrical instructions and use properly grounded, outdoor GFCI-protected power where required. California warning: Cancer and reproductive harm — www.P65Warnings.ca.gov.
Official documentation
Product Resources
Use the current Aquascape instructions for complete installation, maintenance, replacement-part and warranty details.
Official product video
See the Signature Series BioFalls® Design
Aquascape Signature Series BioFalls® Filters
Official AquascapePonds overview of the Signature Series family, including the filter layout, reversible spillway and landscape integration. Confirm exact 2500-model specifications on this page and in the manual.
Need Help Matching the Filter, Pump and Pond?
Tell our Sales/Tech Team your pond dimensions, estimated volume, waterfall width, pipe size and pump model. We can help you check the system before you order.
Frequently Asked Questions
Is this a complete pond kit?
No. This listing is for the Signature Series 2500 BioFalls® filter and its listed internal, spillway and plumbing parts. The pump, skimmer or prefilter, pipe, pond liner, BioBalls, sealants, natural stone and other pond-building materials are sold separately.
What pond size and flow can the 2500 BioFalls handle?
Aquascape rates it for ponds up to 2,500 gallons and pump flow up to 5,000 GPH. Use the pump's flow at the actual installed head height, not its zero-head maximum, when checking the match.
Are BioBalls included?
No. A biological filter media net is included, but BioBalls are sold separately. Aquascape recommends 200 BioBalls for the Signature Series 2500.
Can I use both 2-inch bulkhead ports?
Yes. The two ports support several configurations: one pump line with the unused port plugged, one pump line plus the optional drain kit, or two separate pump lines. Follow the manual for fitting orientation, sealing and pipe connections.
What does the reversible spillway lip change?
An outward-facing lip creates a defined ledge and is Aquascape's recommended orientation for first-time installers. An inward-facing lip leaves a flatter front face for more flexible boulder placement. The 2500 also includes a faux waterfall stone for the outward orientation.
How often should I clean the filter mats?
Aquascape specifies no more than once-a-year cleaning when the BioFalls is paired with a Signature Series skimmer or another effective prefilter. Avoid chlorinated tap water on the biological surfaces, and replace mats when they begin to tear or deteriorate.
Can this be added to an existing pond?
Yes, if the pond volume, pump flow and site support the 2500 model. Aquascape's manual advises planning an extra liner section of approximately 4 feet by 6 feet so the BioFalls lip can overlap the pond correctly.
What warranty applies?
Aquascape provides a limited lifetime warranty against manufacturing defects on the BioFalls filter housing when properly installed and maintained. Plastic internal parts carry a one-year warranty. Filter pads and media are consumable items and are not covered. Proof of purchase is required, and the manual contains the complete terms and exclusions.
