Mini Elite Pump Canyon
$159.99
Small Elite Pump Canyon
$299.99
PROUDLY MADE IN THE USA!
• Maximum Pump Flow: 7,500 GPH
• Pump Canyon Capacity: 16 Gallons
• Dimensions: 15.5" x 18" x 22.5" H
• Durable One-Piece Molded Construction
• Removable Pump-Access Lid
• UniSeal Accepts 2" Flex Hose
• Auto-Fill Spinweld Fitting (Kit Sold Separately)
• Lifetime Manufacturer's Plastics Warranty
• Maximum Pump Flow: 7,500 GPH
• Pump Canyon Capacity: 16 Gallons
• Dimensions: 15.5" x 18" x 22.5" H
• Durable One-Piece Molded Construction
• Removable Pump-Access Lid
• UniSeal Accepts 2" Flex Hose
• Auto-Fill Spinweld Fitting (Kit Sold Separately)
• Lifetime Manufacturer's Plastics Warranty
Elite Series | Pond-Less Waterfall Components
Small Elite Pump Canyon – Protected Pump Access for Pond-Less Waterfalls
Our Small Elite Pump Canyon is a durable, one-piece molded pump vault designed for underground pond-less waterfall reservoirs. It houses your submersible pump, allows surrounding reservoir water to enter through side slots, and provides access for routine pump maintenance without dismantling the entire water feature.
With a maximum pump flow rating of 7,500 GPH, a removable access lid, and a connection for optional automatic water filling, it is a practical choice for medium-size pond-less waterfall systems.
7,500 GPHMaximum pump flow
16 GallonsPump Canyon capacity
22.5"Overall height
LifetimePlastics warranty
Built for Underground Pump Protection
Durable Molded Construction
The rigid, faceted body is designed for use inside rock-covered underground reservoirs. The one-piece molded construction helps provide a sturdy protective chamber for the pump.
Water Entry and Pump Access
Side openings allow water from the surrounding basin to enter the chamber. A removable lid makes it easier to inspect, clean, service, or remove the pump when needed.
Pump Vault Only – Not a Complete Waterfall Kit
The Small Pump Canyon is a pump housing and access chamber, not a complete water-storage basin or pond-less waterfall system. A finished waterfall requires a properly sized underground reservoir, pump, plumbing, liner, and waterfall components purchased separately unless included with another kit.
Small Elite Pump Canyon Specifications
Product: Small Elite Pump Canyon
SKU: PB1168
UPC: 897570001168
Dimensions: 15.5" x 18" x 22.5" H
Capacity: 16 gallons
Maximum pump flow: 7,500 GPH
Hose connection: UniSeal accepts 2" flex hose
Construction: One-piece molded body
Access: Removable lid
Excavation depth: 25" per installation guide
Application: Pond-less waterfall reservoir
Warranty: Lifetime manufacturer's plastics warranty
Compare Elite Pump Canyon Sizes
Choose your Pump Canyon based on pump flow, the pump's physical dimensions, plumbing requirements, and the available installation depth. Each model has its own capacity and maximum flow rating.
| Specification | Mini | Small – This Model | Large |
|---|---|---|---|
| Item Number | PB1366 | PB1168 | PB1175 |
| Dimensions | 12.25" x 14" x 16" H | 15.5" x 18" x 22.5" H | 24" x 27.75" x 31.5" H |
| Canyon Capacity | 7 gallons | 16 gallons | 57 gallons |
| Max. Pump Flow | 2,500 GPH | 7,500 GPH | 20,000 GPH |
| Guide Excavation Depth | 19" | 25" | 34" |

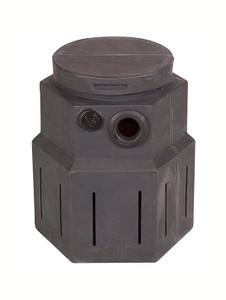

Mini Elite Pump Canyon
SKU: PB1366
Dimensions: 12.25" x 14" x 16" H
Capacity: 7 gallons
Max. pump flow: 2,500 GPH
Excavation depth: 19"
Small Elite Pump Canyon – This Model
SKU: PB1168
Dimensions: 15.5" x 18" x 22.5" H
Capacity: 16 gallons
Max. pump flow: 7,500 GPH
Excavation depth: 25"

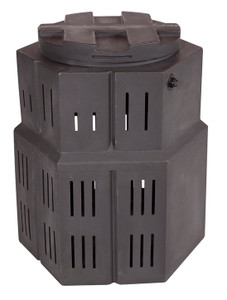

Large Elite Pump Canyon
SKU: PB1175
Dimensions: 24" x 27.75" x 31.5" H
Capacity: 57 gallons
Max. pump flow: 20,000 GPH
Excavation depth: 34"
Need a different size? Explore the Mini Elite Pump Canyon or Large Elite Pump Canyon. Maximum flow alone does not guarantee that a particular pump will physically fit inside the chamber.
What's Included and What You'll Need
Included with the Pump Canyon
One-piece molded Small Elite Pump Canyon body with removable access lid, water-entry slots, hose connection provision, and molded connection for optional automatic water filling.
Other System Components
A compatible submersible pump, discharge/check valve assembly, flex hose, protective underlayment, rubber liner, Basin Matrix, waterfall spillway, and finishing stone are needed as appropriate for the overall waterfall design. These are not part of this standalone Pump Canyon listing.
Plan Your Pond-Less Waterfall Reservoir
Our Small Pump Canyon is installed at the lower end of the waterfall or stream, inside a lined underground basin. Water enters the chamber from the surrounding reservoir, and the pump sends it through flexible plumbing to the upper waterfall spillway.
The published 16-gallon capacity describes the Pump Canyon itself, not the total water capacity required for a completed waterfall. Reservoir volume should be planned for the operating water in the stream, plumbing, and basin.
Before Excavating
Our installation guide specifies a 25-inch excavation depth for the standard Small Pump Canyon. Final basin length and width depend on your reservoir design and Basin Matrix configuration. Keep the access lid reachable for future pump maintenance.
Installation Overview
These are the major installation stages. Follow the applicable Blue Thumb guide for detailed measurements, plumbing, and construction instructions.
1
Plan and Excavate
Determine the stream route, pump location, reservoir volume, and Basin Matrix layout. Mark the basin area and excavate to the specified depth.
2
Prepare the Lined Reservoir
Install protective underlayment and rubber liner. Position the Pump Canyon and Basin Matrix boxes within the basin according to the installation plan.
3
Connect the Pump and Plumbing
Install the appropriately sized submersible pump inside the Pump Canyon. Connect the discharge assembly and route the flexible hose to the waterfall spillway. Allow access to the pump power cord and lid.
4
Finish, Fill, and Test
Complete the rockwork and waterfall, fill the reservoir, and start the system. Check water circulation, plumbing connections, and reservoir water level before completing the surrounding landscape.
Useful Components and Accessories
Basin Matrix Water Storage
Our Basin Matrix boxes provide underground reservoir storage around the Pump Canyon. Select the number and size needed for your waterfall design. Sold separately.
Optional Automatic Water Fill
The built-in spinweld connection accommodates our Hudson Automatic Water Fill Kit (PB1342). It helps replace water lost to evaporation or splash-out. The kit and water-supply connection are sold separately.

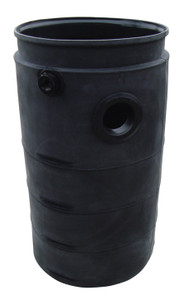

Small Pump Canyon Extension
For projects requiring a deeper reservoir configuration, consider our Small Pump Canyon Extension (PB2354). Confirm the extension arrangement and excavation requirements before ordering. Sold separately.
Pond-Less System Components
Explore our Pump Canyons and Water Reservoirs for other reservoir components and sizing options.
Routine Maintenance and Winter Care
Periodically remove the access lid and inspect the chamber, pump, and water-entry slots for accumulated debris. Check the flexible hose, discharge connections, and water level. Keep the reservoir supplied with enough water for proper pump operation.
For seasonal shutdown in freezing climates, our maintenance guide recommends unplugging and removing the pump and check valve assembly, cleaning them, and storing the pump submerged in water in a frost-free location where appropriate for that pump. The underground basin should remain at least half full during winter to help reduce freeze-thaw movement.
Installation Guides and Product Resources
Need Help Sizing Your Pump Canyon?
Our Sales and Technical Team can help you choose the correct Pump Canyon, plan your reservoir, and confirm pump and plumbing compatibility before ordering.
Frequently Asked Questions
Does the Small Elite Pump Canyon include a pump?
No. This standalone listing is for the Small Elite Pump Canyon vault. The submersible pump and related waterfall components must be purchased separately unless you are purchasing a complete kit that includes them.
Can the Small Pump Canyon handle a pump rated above 7,500 GPH?
The published maximum pump flow rating is 7,500 GPH. For applications requiring higher flow, compare our Large Elite Pump Canyon, rated up to 20,000 GPH. Always confirm the pump's physical dimensions and plumbing compatibility.
Is the 16-gallon capacity enough for my waterfall?
The 16-gallon figure is the capacity of the Small Pump Canyon itself. A completed pond-less waterfall normally requires additional underground reservoir storage, commonly provided by Basin Matrix boxes. Total required capacity depends on the overall waterfall design.
What size hose connection does this Pump Canyon accept?
The Small Elite Pump Canyon has a UniSeal connection designed to accept 2-inch flexible hose. Verify the pump discharge assembly and remaining plumbing components before installation.
Can I add an automatic water-fill system?
Yes. The molded autofill connection is designed for an optional automatic water-fill system. Our Hudson Automatic Water Fill Kit, PB1342, is sold separately and requires a suitable water-supply connection.
Can I make the Pump Canyon deeper?
Our Small Pump Canyon Extension, PB2354, is designed specifically for the Small Pump Canyon. Review its installation and sizing requirements before planning a deeper reservoir.
What does the lifetime warranty cover?
Our lifetime plastics warranty covers manufacturing defects in qualifying Blue Thumb engineered plastic components for the original purchaser, subject to warranty terms. Proper installation is required, and post-purchase modifications void coverage. The warranty does not include associated labor or freight costs.
