AI83013

Aquascape Backyard Waterfall Landscape Fountain Kit

SKU:
AI83013
$1,279.99
(No reviews yet) Write a Review
  • 12" Waterfall Spillway
  • 98-Gallon AquaBasin Reservoir
  • Includes AquaSurge 2000 Pump
  • Complete Pond-less Waterfall Kit
  • Low-Maintenance Recirculating Water Feature

Compare Similar Blue Thumb Kits:

Current Stock:
Description
Complete DIY Pond-less Waterfall System

Aquascape Backyard Waterfall Landscape Fountain Kit

Create a natural-looking backyard waterfall without building a traditional pond. The Aquascape Backyard Waterfall Landscape Fountain Kit combines a 12-inch waterfall spillway, AquaSurge 2000 pump, and concealed AquaBasin 45 reservoir into one coordinated recirculating system.

Water cascades over your arranged stonework before disappearing into the hidden reservoir below. It's a practical option for adding the sight and sound of running water to a garden, patio landscape, or outdoor living space.

12" Waterfall Spillway
98 Gal. Basin Storage Capacity
2000 AquaSurge Pump Model
7.5' × 7.5' 45 Mil EPDM Liner

Before You Order: Decorative Stone Is Not Included

This kit includes the primary mechanical components, liner, plumbing, and installation materials. You will supply the decorative rocks and gravel that create the finished waterfall.

Aquascape's installation manual estimates approximately 1,000 pounds of stone and 300 pounds of 1"–1.5" gravel for a typical installation. Actual quantities depend on your design.

Why Choose This Pond-less Waterfall Kit?

No Traditional Pond Required

The water disappears beneath decorative gravel and recirculates through a concealed basin. Enjoy a flowing waterfall without creating an exposed fish pond.

Large Underground Reservoir

The AquaBasin 45 provides up to 98 gallons of storage capacity and features a removable access panel for pump maintenance.

Coordinated Equipment

Aquascape packages the pump, spillway, liner, reservoir, and plumbing components together, reducing the guesswork of selecting the primary system parts individually.

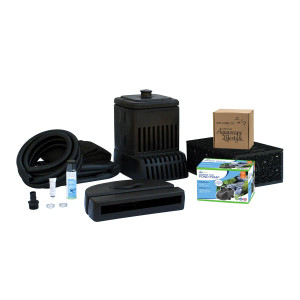

What's Included in the Kit?

The Aquascape Backyard Waterfall Landscape Fountain Kit includes the primary equipment needed to create a recirculating, pond-less landscape waterfall.

Waterfall & Circulation

  • 12" Aquascape Waterfall Spillway
  • AquaSurge 2000 Pond Pump
  • Low Suction Intake Attachment
  • 1.5" × 15' Flexible PVC Pipe
  • Required plumbing fittings and adapters

Reservoir & Water Containment

  • AquaBasin 45 Water Reservoir
  • Removable Pump Access Panel
  • Up to 98 Gallons of Storage Capacity
  • 7.5' × 7.5' Pre-Cut 45 Mil EPDM Liner
  • Two Geotextile Underlayment Pieces

Installation Materials

  • 2" Bulkhead Fitting
  • AquaBasin Plumbing Adapter
  • PVC Pipe Adapters
  • PVC Pipe Cement
  • Pond and Waterfall Foam Sealant
  • Black Silicone Sealant
  • Installation Instructions

Additional Items to Supply

  • Decorative boulders and waterfall stones
  • Approximately 300 lbs. of finishing gravel
  • Water for the reservoir
  • Excavation and landscaping materials
  • Outdoor GFCI-protected electrical access
  • Optional landscape lighting and plants

Planning Your Waterfall

Aquascape describes this kit as suitable for creating a waterfall feature up to approximately 3 feet. The finished dimensions depend on your stone arrangement, elevation, and available liner.

The AquaBasin is installed underground at the bottom of the waterfall. Allow additional space behind the basin for the waterfall structure and room to access the pump.

Unlike larger pondless waterfall systems with separate underground storage modules and pump vaults, this kit uses the AquaBasin 45 as its concealed reservoir.

Technical Specifications

Blue Thumb SKU: AI83013
Manufacturer Item: 83013
Product Type: Complete pond-less waterfall kit
Waterfall Spillway: 12" Aquascape Spillway
Spillway Model: 77023
Spillway Dimensions: 10.5" L × 14" W × 5" H
Spillway Max Flow: 4,000 GPH component rating
Water Reservoir: AquaBasin 45
Reservoir Model: 78224
Reservoir Capacity: Up to 98 gallons
Included Pump: AquaSurge 2000
Pump Power: 120V AC, 60 Hz, 160W
Pump Intake: Low Suction Intake Attachment included
Flexible Pipe: 1.5" × 15'
Liner: 7.5' × 7.5', 45 mil EPDM
Underlayment: Two geotextile pieces
Basin Excavation: Approximately 17" deep per installation manual
Lighting: Not included

Maximum component flow ratings are not the actual operating flow of the installed waterfall. Pump output depends on installation height and plumbing resistance.

Compare Aquascape with Blue Thumb Waterfall Kits

We also offer our own DIY Cascading Falls Kits in two sizes worth considering. All three systems create a recirculating pond-less waterfall, but their spillway widths, reservoirs, liners, and pump configurations differ.

Current Product

Aquascape Backyard Waterfall Kit

AI83013
  • Waterfall Spillway: 12"
  • Pump: AquaSurge 2000
  • Reservoir: AquaBasin 45
  • Storage Capacity: Up to 98 gallons
  • EPDM Liner: 7.5' × 7.5'
  • Flexible Pipe: 1.5" × 15'

Best suited for: A compact landscape waterfall where the customer prefers a larger, self-contained underground storage basin with accessible pump placement.

Blue Thumb Mini 10" Cascading Falls Kit

PB1373
  • Waterfall Spillway: 10"
  • Pump: 1,495 GPH Mag-Drive
  • Reservoir: Canyon Matrix
  • Storage Capacity: 21 gallons nominal
  • EPDM Liner: 6' × 10'
  • Flexible Pipe: 1" × 7'
  • Planned Stream: Up to 4' long × 1'–2' wide

Best suited for: Smaller landscape spaces where a short, narrow waterfall is desired.

View Blue Thumb Mini Kit

Blue Thumb Small 20" Cascading Falls Kit

PB1854
  • Waterfall Spillway: 20"
  • Pump: 1,980 GPH Mag-Drive
  • Reservoir: Canyon Matrix
  • Storage Capacity: 21 gallons nominal
  • EPDM Liner: 8' × 15'
  • Flexible Pipe: 1.5" × 10'
  • Planned Stream: Approximately 7' long × 2'–4' wide

Best suited for: Customers looking for a wider waterfall and longer stream layout.

View Blue Thumb Small Kit

Stream lengths listed for the Blue Thumb kits are planning guidelines. Aquascape specifies its Backyard Landscape Fountain Kit differently, so stream lengths are not directly interchangeable. Final dimensions depend on elevation, stone placement, and liner layout.

Installing Your Pond-less Waterfall

This is a coordinated DIY system, but installation requires excavation, plumbing, liner placement, and substantial stonework. Review the manufacturer's complete instructions before beginning.

1

Choose Your Location

Select a location visible from your patio, deck, or living area. Plan the waterfall's direction, the underground basin position, and access to a properly protected electrical outlet.

2

Excavate and Install the AquaBasin

Mark the basin footprint and excavate according to the installation manual. Aquascape calls for a hole approximately 17 inches deep so the basin can sit flush with the finished landscape. Install and level the reservoir.

3

Connect the Pump and Plumbing

Install the supplied AquaSurge low suction intake attachment and connect the pump to the basin plumbing using the included fittings and flexible PVC pipe.

4

Build the Waterfall and Position the Spillway

Install the underlayment and EPDM liner. Arrange the larger stones to create the desired cascading effect. Position and level the 12-inch spillway, make the plumbing connection, and use the included waterfall foam to help direct water over the visible rockwork.

5

Fill, Start, and Adjust

Fill the reservoir before operating the pump. Once sealants have cured as directed, start the waterfall and check for leaks or water escaping over the liner edges. Adjust the stones and water path before trimming the excess liner.

Important Installation and Electrical Safety

Connect the pump directly to a properly grounded, outdoor GFCI-protected electrical receptacle. Do not use an extension cord.

This system is not approved for swimming pools or marine applications. Locate underground utilities before excavation and follow applicable electrical and installation requirements.

Waterfall Maintenance and Winter Care

Pond-less waterfalls generally require less routine care than traditional fish ponds, but they are not maintenance-free.

  • Check the reservoir water level regularly and replenish water lost through evaporation and splashing.
  • Remove leaves, twigs, and other debris that accumulate in the waterfall.
  • Inspect the pump intake and clean the pump as directed by the manufacturer.
  • Use appropriate fountain water treatments according to their instructions.
  • In freezing weather, monitor operating waterfalls for ice dams that could redirect water outside the lined area.

If you shut the system down for winter, Aquascape recommends removing the pump and plumbing assembly and storing them in a frost-free location.

For ongoing maintenance, explore our fountain water treatments .

Manufacturer Warranty Coverage

Aquascape provides separate warranty coverage for the major components included in this kit.

  • 12" Waterfall Spillway: Lifetime warranty
  • AquaBasin 45: Lifetime warranty
  • EPDM Pond Liner: 20-year guarantee
  • AquaSurge 2000 Pump: 3-year warranty
  • 1.5" Flexible PVC Pipe: 1-year warranty

Warranty coverage is subject to Aquascape's published conditions and exclusions. Refer to the official manual for complete terms.

Installation Manuals and Product Resources

We recommend reviewing the manufacturer's instructions before ordering or beginning installation.

Installation Manual (PDF) Backyard Waterfall Owner's Guide Guide du propriétaire (Français)

Watch: How to Build a Backyard Waterfall

Watch Aquascape's official installation walkthrough for the Backyard Landscape Waterfall Fountain Kit. Use the video together with the current installation manual for component placement and installation details.

Official Aquascape installation video: How To Build a Backyard Waterfall.

Need Help Choosing the Right Waterfall Kit?

Not sure whether the Aquascape Backyard Waterfall Kit, our Mini Cascading Falls Kit, or our Small Cascading Falls Kit is right for your landscape?

Our Sales/Tech Team can help you compare the available systems and plan your installation.

Call 888-619-3474 Email Our Sales/Tech Team
Frequently Asked Questions
Does this waterfall kit require a pond?

No. This is a pond-less waterfall system. Water flows over the rocks and disappears into the concealed AquaBasin reservoir, where it is recirculated back to the spillway.

Are the decorative rocks and gravel included?

No. Decorative rocks and gravel are sold separately. Aquascape estimates approximately 1,000 pounds of stone and 300 pounds of 1"–1.5" gravel for a typical installation. Your actual requirements will depend on the finished design.

What's the difference between this kit and Blue Thumb's Mini Cascading Falls Kit?

The Aquascape kit includes a 12-inch spillway, AquaSurge 2000 pump, and AquaBasin 45 with up to 98 gallons of water storage. Our Mini PB1373 uses a 10-inch spillway, 1,495 GPH Mag-Drive pump, and 21-gallon Canyon Matrix reservoir. The Mini is designed for a stream up to approximately 4 feet long. Compare the Mini Cascading Falls Kit.

Should I choose the Aquascape kit or Blue Thumb's Small 20-inch kit?

Choose based on your preferred waterfall width, layout, and reservoir design. Aquascape's kit has a 12-inch spillway and larger-capacity AquaBasin reservoir. Our PB1854 features a 20-inch spillway and is designed for a wider stream approximately 7 feet long and 2–4 feet wide. Compare the Small 20-inch Cascading Falls Kit.

Does this kit include an automatic water-fill system?

No automatic water-fill system is listed among the included components. The reservoir must be monitored and refilled as needed to compensate for evaporation and splashing.

Is the waterfall lighting included?

No. LED waterfall lighting is an optional addition. Aquascape recommends planning lighting placement during construction, before the basin and surrounding stonework are completely covered.

Can I leave the waterfall running during winter?

Aquascape allows for seasonal operation when conditions permit, but running a waterfall during freezing weather requires regular monitoring for ice dams and water loss. If shutting down, remove the pump and plumbing assembly and store them in a frost-free location.

Does the entire kit have a lifetime warranty?

No. The AquaBasin 45 and 12-inch Waterfall Spillway have lifetime warranty coverage. The liner has a 20-year guarantee, the AquaSurge 2000 pump has a 3-year warranty, and the flexible PVC pipe has a 1-year warranty. Manufacturer conditions apply.
