2-outlet Pond Aeration Kit

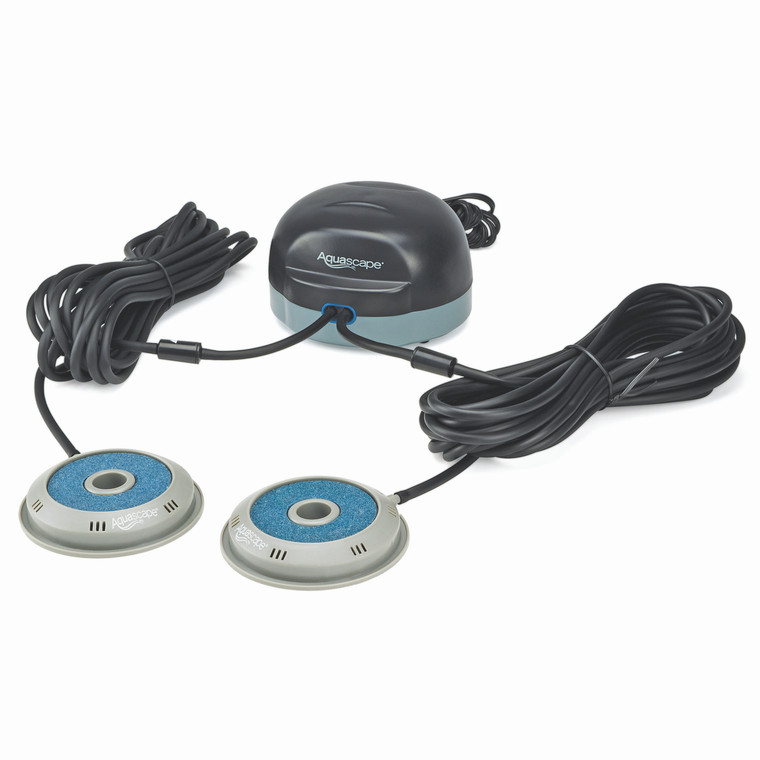

Aquascape 2-Outlet Pond Aeration Kit

SKU:
AI75000
$71.99
(No reviews yet) Write a Review
  • 2 aerator discs with 25 ft airlines and check valves
  • Dimensions: 5.25 in L x 4.75 in W x 3.5 in H
  • Max Pond size: 2,000 gal
  • Recommended Max Pond Depth: 8.5 ft
Current Stock:
Description

The Aquascape 2-Outlet Pond Aeration Kit supplies air through two separate diffuser discs to support oxygenation and water movement in ponds up to 2,000 gallons. Its compact 6-watt compressor makes it a practical choice for warm-weather oxygen support, overnight aeration and properly configured winter gas exchange.

The complete kit includes two 25-foot airlines with pre-installed check valves and two round, weighted aeration discs. Spreading the discs apart helps circulate more of the pond instead of concentrating both bubble columns in one location.

Key Features

  • Two outlets provide aeration at two locations in the pond.
  • Rated for ponds up to 2,000 gallons and a maximum recommended pond depth of 8.5 feet.
  • Maximum loaded airflow of 8 liters per minute (0.28 CFM).
  • Energy-efficient 6-watt compressor with rubber feet to reduce vibration.
  • Pre-installed check valves help prevent pond water from back-siphoning toward the compressor.
  • Replaceable aeration discs and diaphragm cartridge support ongoing maintenance.
  • Covered by a 3-year limited manufacturer warranty.

What’s Included & Specifications

Included

  • 2-outlet pond aerator compressor
  • Two 4-inch aeration discs
  • Two 25-foot rolls of 3/16-inch silicone airline
  • Two pre-installed check valves

Not Included

  • Pond skimmer, pond pump or waterfall box shown in the installation graphic
  • Pond de-icer
  • Additional airline or electrical extension cord
Pond capacity: Up to 2,000 gallons
Recommended maximum depth: 8.5 feet
Maximum loaded airflow: 8 L/min (0.28 CFM)
Outlets: 2
Power: 6 watts, 120V, 60 Hz
Power cord: 6 feet
Compressor dimensions: 5.25" L × 4.75" W × 3.5" H
Airline: Two 25-foot rolls, 3/16" silicone
Diffusers: Two 4-inch aeration discs
Manufacturer item number: 75000

Installation & Seasonal Use

  1. Install the compressor in a dry indoor location protected from weather, airborne dust and debris. Never submerge the compressor.
  2. Position the compressor higher than the pond’s water level to reduce the risk of water back-siphoning into the unit.
  3. Connect each airline’s check-valve end to a compressor outlet, then connect an aeration disc to the other end.
  4. For normal warm-season operation, place the discs on the pond bottom and separate them to improve circulation across the pond.
  5. Plug the compressor directly into a properly grounded GFCI-protected receptacle. The manufacturer instructs users not to use an extension cord.

Winter Placement

Do not leave the aeration discs on the pond bottom during winter. Move them to approximately 12–18 inches below the surface so circulation does not disturb the deeper, warmer water where fish overwinter.

In regions with prolonged extreme cold, Aquascape recommends considering a pond de-icer in combination with aeration. Browse Blue Thumb’s seasonal pond-care products for available de-icer options.

Frequently Asked Questions

What size pond can this aeration kit handle?

It is rated for ponds up to 2,000 gallons, with a maximum recommended pond depth of 8.5 feet.

What comes with the 2-Outlet Pond Aeration Kit?

The kit includes the two-outlet compressor, two 4-inch aeration discs and two 25-foot silicone airlines with pre-installed check valves.

Are the skimmer and waterfall box in the graphic included?

No. The second product image illustrates a possible pond layout. The skimmer, waterfall box, pond pump and other pond components shown are not part of this aeration kit.

Can the compressor be installed outdoors?

The compressor must be kept in a dry indoor location protected from weather, dust and debris. It should be positioned above the pond water level and must never be submerged.

Where should the two aeration discs be placed?

During normal warm-season operation, place the discs on the pond bottom and separate them to improve circulation. Small rocks or gravel may be used to conceal the tubing or help secure the discs without blocking airflow.

Can this pond aerator be used during winter?

Yes. For winter operation, move the discs to approximately 12–18 inches below the water surface rather than leaving them on the bottom. The resulting surface movement can help maintain a small opening for gas exchange. A de-icer may also be appropriate during extended periods of extreme cold.

What should I check if the airflow decreases?

Unplug the compressor, then check that the airlines are not kinked or restricted and that the check valves face the correct airflow direction. Continued pressure loss may indicate that the replaceable diaphragm cartridge is worn. Individual replacement aeration discs are also available.

Can I power the compressor with an extension cord?

No. Aquascape instructs users not to use an extension cord. Connect the compressor to a properly grounded, GFCI-protected receptacle and follow all applicable electrical codes.
